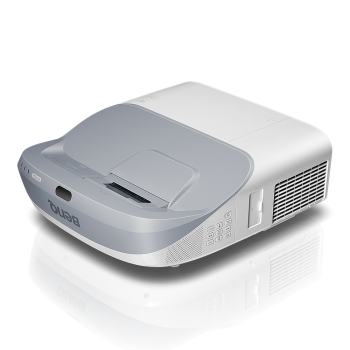

Проектор BenQ MW864UST
Delivering Tomorrow’s Education Solutions Today
Interactive education projector MW864UST is engineered to enhance sharing, interaction, and collaboration while simplifying installation and reducing total ownership costs with a filtered nearly-sealed optical engine to withstand severe dusty environments. As the world’s No. 1 DLP brand, MW864UST offers ultra-short throw projection with superb picture quality and high brightness for superior readability in well-lit classrooms.
KEY FEATURES
- High Brightness of 3,300 ANSI Lumens
- WXGA Resolution by Ultra Short Throw
- Scalable for Wireless Use and Interactivity
Expanding Classroom Possibilities with Ultra-Short Throw
Unobstructed Instruction Without Space Constraints
Requiring as little as 8cm projection distance for an 87” screen, MW864UST ultra-short throw projector can be mounted inches from the wall directly above the screen, eliminating distracting shadows and glare for students and teachers to engage and collaborate freely in front of the board.
Creating Lasting Lessons with Striking Picture Quality
Uncompromised High Brightness
For perfect projection performance, MW864UST produces 3,300 ANSI lumens and WXGA 1280x800 high resolution for clear, sharp images and text even in large, bright classrooms. High brightness allows lights to be kept on during lessons, and the wide-aspect high resolution increases readability for expanded content.
Bigger Images
BenQ education projectors offer a range of resolutions and projected image sizes to meet diverse classroom needs. Featuring crisp image quality up to 100 inches, our ultra-short throw education projectors deliver increased classroom versatility at reduced costs.
Optical Technology Designed for Learning



Enabling Interactive Learning
Create Interaction on Any Surface
Multi-Touch with Pens or Fingers
Multi-Screen Drawing
Multi-Screen Drawing

Intuitive Setup
User-Friendly and 100% Effective Auto Calibration
PointWrite™ auto calibrates and saves its settings the instant it is plugged into a computer’s USB port. PointWrite™ then remains ready with no manual configuration or complicated training for teachers. And MW864UST’s interactive sensor guarantees reliable auto-calibration in any ambient lighting.
Windows Gesture Support
PointWrite™ projectors support intuitive Windows gestures such as zooming in and out or scrolling while browsing webpages, pictures or Google Maps. All multi-touch commands and gestures are supported for Windows 8 or above and future applications.
Making Collaboration Easier with BYOD
Simple and Convenient Wireless Dongle

MHL Support
With MHL, teachers and students can share content from Android devices on the big screen, conducting the entire lesson from the smart device without draining its battery.
Optimizing Educational Investment
Future-Proof Modular Upgradability

Advanced Dust-Proof Engine

BenQ Eco Cycle System: Optimized Energy Savings

Facilitating Smart, Efficient Projector Maintenance
Instant Power-On
BenQ education projectors turn on as soon as an HDMI or VGA is plugged in, significantly reducing setup time.
LAN Control Compatibility

Simplifying Image Alignment and Perfect Installation
Streamlined Wall Mount Alignment

Clear Images without Distortion

Remote Control Hotkey
Press the “Quick Install” hotkey on the remote control to setup the projector. This is a great time saver for managers performing initial projector installation work.
Спецификации:
| Projection System | DLP Single 0.65" WXGA |
| DMD type | DC3 DMD Chip |
| Native Resolution | 1280x800 pixels |
| Brightness (ANSI Lumens) | 3300 ANSI lumens |
| Contrast Ratio | 13,000:1* |
| Display Color | 1.07 Billion |
| Lens | F=2.4, f=3.35mm |
| Light Source | Lamp (240W) |
| Light Source Life | 3000/4000/6000 hours (Normal/Eco/SmartEco mode) |
| Aspect Ratio | Native 16:10 (5 aspect ratio selectable) |
| Throw Ratio | 0.23 |
| Image Size (Diagonal) | 87” ~ 120” |
| Zoom Ratio | Fixed |
| Keystone Adjustment | 2D; Vertical ± 30 degrees, Horizontal ± 25 degrees |
| Projection Offset** | 115% |
| Resolution Support | VGA (640 x 480) to WUXGA (1920 x 1200) |
| Horizontal Frequency | 15K~102KHz |
| Vertical Scan Rate | 23-120Hz |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Interface | HDMI (1.4a) x 2 (HDMI-2 share with MHL)
PC In (D-sub 15pin) x 2 (shared with component video) Monitor Out (D-sub 15pin) x 1 Composite Video In (RCA) x 1 S-Video In x 1 Audio In (mini jack) x 2 Audio L/R In (RCA) x 1 Audio Out (mini jack) x 1 LAN RJ45 x 1 (LAN control) RS232 (DB-9pin) x 1 USB (Type A) x 1 (5V/1.5A power supply) USB (Type mini B) x 2 (FW download / optional interactive camera) IR Receiver x1 (front) |
| Weight | 6.2 kg (w/o wall mount plate) |
| Dimensions (W x H x D mm) | 382(W)*145(H)*435(D) mm |
| Build in Speaker | 20W (10Wx2) |
| Operating Temperature | 0° ~ 40°C |
| Audible Noise (Normal/Economic Mode) | 35/29 dBA |
| Power Supply | AC100V to 240V, 50Hz to 60Hz |
| Power Consumption | Max 410W. Normal 353W. Eco 252W
Network Standby <2W, Standby <0.5W |
| On-Screen Display Languages | Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Accessories (Standard) | Remote Control w/ Battery RCS011 x 1
Power Cord (by region) x 1 Quick Start Guide x 1 Warranty Card (by region) x 1 VGA(D-sub 15pin) Cable x 1 Wall Mount Kit (with installation guide) x 1 |
| Accessories (Optional) | Spare Lamp Kit 5J.JDM05.001
3D Glasses DGD5 5J.J9H25.001 Document Camera S30 9H.J9L78.T3E PointWrite Kit PW21U 5J.JDN26.11E PointWrite Touch Module PT12 5J.J8L26.13E |
| Security | Kensington Lock ,Security Bar ,Hidden Space for Wireless Dongle |
