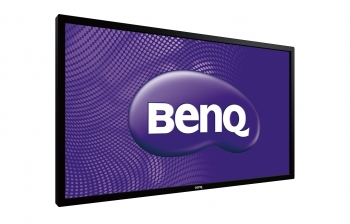

Интерактивная панель BenQ IL460
Based on the infrared (IR) technology, the IL Series offers the highest number of touch points in the current digital signage market. The advanced design eliminates most "dead zones" and boosts pointing precision significantly, while the sensor package is now dust-proof and more reliable in portrait mode comparing to competing products.
The MDA (Multiple Display Administrator) application controls multiple & discrete displays simultaneously through the local network or serial port; it also monitors the health of displays and coordinates a sequential startup to prevent power surges.
*Controlling up to 98 units (RS232), unlimited units (LAN)
BenQ puts extra attention on scenarios in which portrait mode communicates better. The PID panel employs a structure featuring more solid fixing points on all edges to prevent "Mura" image distortion common on vertically positioned consumer displays.
DisplayPort is a new standard for digital audio/video transmission. With the whopping 10.8Gbps bandwidth, the DisplayPort keeps your contents attractive, distortion-free in longer distances than conventional DVI and HDMI.
BenQ IL Series supports remote administration via the built-in RJ45 Ethernet or the RS232 serial interface. Routine tasks such as OSD settings and firmware upgrades can be performed on the control server to the daisy-chained displays.
In commercial environments where images would stay for hours, image retention becomes a problem on consumer displays. PID panels designed for digital signage prevents the burned-in effect even after an extended period of usage.
The IL Series has an amazing average life of 50,000 hours - enough for years of non-stop service. With the reliable industrial-class performance, sturdy build and touch functions, the IL Series is in fact more versatile and economic then consumer models.
A sensor automatically adjusts screen brightness according to the lighting condition of the surrounding environment. Since the power usage adapts intelligently with the ambient light, the display can reduce energy consumption by 40% to 50%.
The PiP/PbP feature displays contents from two independent video sources simultaneously for more convenience and flexibility. The PiP mode allows the sub picture to be resized or relocated for the best presentation.
The feature enables users to designate up to seven sets of on/off time for IL Series displays down to individual video input sources. This not only eliminates the need to switch displays on/off manually, but also cuts power bills with precise agendas.
Analog Daisy Chaining is the easiest way to build a video wall. You can simply connect up to 9 displays through VGA cables without using splitters; the screens can show a mirrored image, or form a 3x3 configuration for an enlarged viewing area.
The panel is capable of displaying 10-bit levels for each primary color, that's 1073.7-million colors in total. This helps producing smooth, rich images with no visible color banding for extremely vivid and effective contents.
Panel | |
| LCD Size | 46" |
| TV/PID Panel | PID |
| Light Source | Edge LED |
| Active Area (mm) | 1018.08(H) x 572.67(V) |
| Resolution | FHD 1920 x 1080 (pixels) |
| Brightness (typ.)/(min) | 500 nits (typ.) |
| Contrast Ratio (typ.) | 4000:1 (typ.) |
| Response Time (ms) | 6.5ms (typ.) |
| Pixel Pitch | 0.53025 (H) x 0.53025 (W) mm |
| Frame Rate | 60 Hz |
| Viewing Angle | 178 degree (H) / 178 degree (V) |
| Color gamut (x% NTSC) | 72% |
| Panel Bit (8 or 10) | 10 bit (8bit+FRC), 1073.7M |
| Power | |
| Voltage | 100 V ~ 240 V, 50 Hz / 60 Hz |
| Maximun (Watt) | <150W |
| Standby (Watt) | <0.5W (only VGA wake-up) |
| Power Off (Watt) | <0.5W |
| Touch | |
| Technology | IR 6-point touch |
| Resolution (points area function) | 32767 x 32767 |
| Capacity | 6 simultaneous touches |
| Touch Output | USB 2.0 |
| OS Supported | Windows: 6 pts (plug & play)
* WinXP * Win7 * Win8 Mac: 6 pts (with driver installation) * 10.7(Lion) * 10.8(Mountain Lion) Linux: 6 pts (with driver installation) * Fedora 15 * Ubunto 12.10 |
| Accuracy | +/- 2.5mm |
| Audio | |
| Audio W (Amp) | 12W+12W |
| Internal Spk | 12W x 2 |
| I/O Connection | |
| Power (AC) Input/Output | O / O |
| Power Switch | O |
| VGA Input/Output | O / O (3x3 Daisy Chain) |
| DVI Input/Output | O / X |
| HDMI Input/Output | O / X |
| Composite Video In/Out (BNC) | O / O |
| Component In (YPbPr, RCA) | RCA |
| RS232 Input/Output | O / O |
| S-Video In/Out | O / X |
| DisplayPort Input | O |
| OPS/Option board slot | X |
| USB Player (Photo, Video) | X |
| RJ45 Port | O |
| Mechanical | |
| Weight (without packing / with packing) | 27.7/32.5 kg |
| Dimension (WxHxD) | 1066x621x100 mm |
| Bezel Width (T/B/L/R) | 22.5/22.5/22/22 mm |
| Wall Mounting | 400x200 (4 Holes) |
| Feature | |
| Features | ●Image Setting
●Source / Volume Control ●Analog Daisy Chain ●RS232 Control Daisy Chain ●ID Setting ●Sharpness Enhancement ●Proof of Image Retention ●Diming Control (Adaptive Contrast) ●Picture in Picture (PIP) ●Picture by Picture (PBP) ●HDMI-HDCP ●De-Interlacing / Comb Filter ●10-bit Color Processing ●Build-in Video Wall Support ●Scheduling ●Ambient Light Sensor ●Total Turn-On Time ●Diagnostic DC voltage (12v/5v) ●Internal Temperature Sensor ●CEC Control |
| Environment | |
| Operation Temp (dC) | 0°C ~ 40°C |
| Storage Temp (dC) | -20°C ~ 60°C |
| Usage (hrs/days) | 24 hours / 7 days |
| Package/Accessory | |
| Remote Controller | O (Generic no brand) |
| PWR Cord (by region) | O |
| VGA Cable | O |
| Quick Start Guide | O |
| User’s Manual Electronic File | O |
| Stand | X (optional, on VESA mount) |
