ЖК панель Panasonic TH-42LFP30W пыле- и влагозащищенная
• Models are scheduled to be sequentially released in October 2011. Release dates will vary depending on the region.

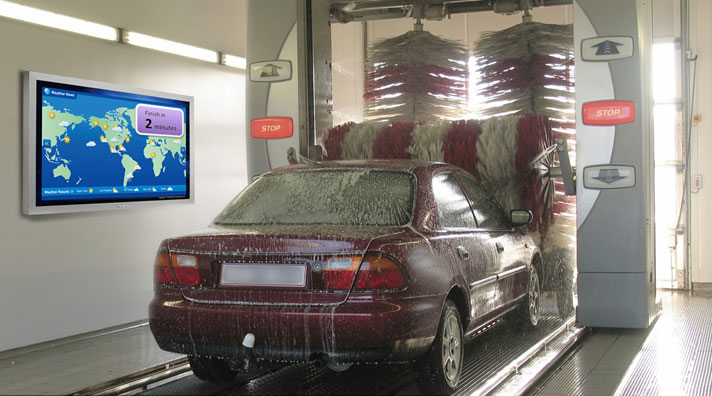

"IP66 enclosure protection rating" enables to be installed in the hard environments such as rainy and dusty location.
A trans-reflective LCD panel is used to produce bright, clear images, and a backlight combines with direct external lighting to enhance visibility. Power consumption is lower than panels that increase brightness by simply raising the intensity of the backlight, which also suppresses the internal temperature rise.
The aluminum cabinet adopts a structure that resists corrosion. In addition, the tempered glass provides strong resistance to impacts.
"Winter mode" ensures displays can be used in temperatures as low as -20 °C .
A transparent resin is injected between the glass and the LCD panel to eliminate the air layer. This enables stable operation with no condensation in cold climates and during low temperatures.
Спецификации:
| IP Rating*1 | IP66 | ||
| DISPLAY PANEL | Screen Size (Diagonal) | 42-inch (1,067 mm)
| |
| Aspect Ratio | 16:9 | ||
| Effective Display Area (W x H) | 930 x 523 mm
| ||
| Number of Pixels (H x V) | 1,920 x 1,080 pixels | ||
| Brightness (Typ) | 1,000 cd/m2 (in daylight*2), 750 cd/m2 (in dark room) | ||
| Contrast Ratio | 1,300 : 1 | ||
| Response Time | 9 ms (G to G) | ||
| Viewing Angle (Horizontal/Vertical) | 178° / 178° | ||
| Orientation | Landscape/Portrait | ||
| CONNECTION
TERMINAL | VIDEO IN/AUDIO IN | BNC x 1 / RCA (L/R) x 1 set | |
| HDMI IN | HDMI TYPE A Connector x 2 (Deep Colour Compatible) | ||
| COMPONENT/RGB IN | BNC x 3 | ||
| AUDIO IN | RCA (L/R) x 1 set | ||
| DVI-D IN | DVI-D 24 pin (HDCP Compatible) x 1 | ||
| PC IN | MINI D-SUB 15 pin x 1, Plug & Play (VESA DDC 2B) | ||
| AUDIO IN (for DVI-D/PC) | M3 JACK x 1 | ||
| CONTROL
TERMINAL | SERIAL | D-SUB 9 pin x 1 (EXTERNAL CONTROL TERMINAL),
RS-232C Compatible | |
| AUDIO | Built-in Speakers | 10 W [5 W + 5 W] (10 % THD) | |
| MECHANICAL | Dimensions (W x H x D) | 1,049 x 642 x 119 mm
| |
| Weight | ~ 38 kg
| ||
| Cabinet Material/Colour | Aluminum / Silver | ||
| Mounting Method | VESA 400 x 400 mm (15.8" x 15.8") | ||
| ENVIRONMENTAL | Operating Environment | Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Temperature (Winter Mode): -20 °C to 40 °C (-4 °F to 104 °F) Humidity: 20 % to 80 % (Non Condensation) | |
