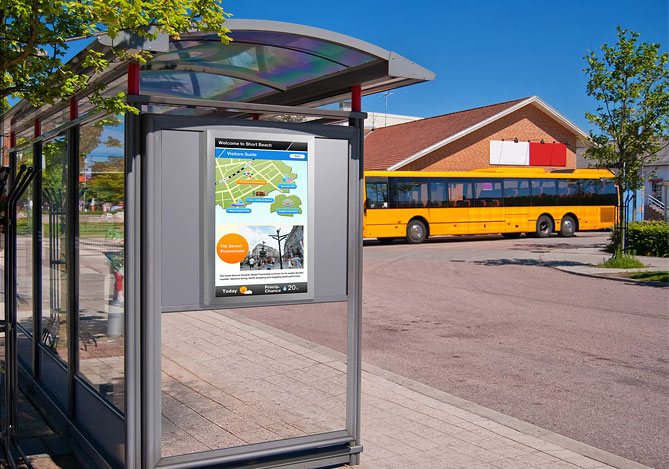

ЖК панель Panasonic TH-47LFT30W для уличного применения
• Models are scheduled to be sequentially released in October 2011. Release dates will vary depending on the region.
• Please contact your local sales company for details.
A trans-reflective LCD panel is used to produce bright, clear images, and a backlight combines with direct external lighting to enhance visibility. A forced-air cooling system using outside air allows the panel to withstand internal temperature rises caused by sunlight, to extend the ambient operating temperature range (the operating temperature limit when the panel is mounted facing direct sunlight*). Power consumption is lower than panels that increase brightness by simply raising the intensity of the backlight, which also suppresses the internal temperature rise.
*When the panel is mounted facing direct sunlight, the operating temperature must be under 40 °C (104 °F) instead of 45 (113 °F) °C.
The TH-47LFT30 is standard-equipped with a touch panel that expands its applications in a variety of new ways, including use in interactive signage systems.
"Degree of protection IP53" holds considerable dust proofing. It can be installed in dusty environments.
Спецификации:
| IP Rating*1 | Corresponding to IP53 | |
| DISPLAY PANEL | Screen Size (Diagonal) | 47-inch (1,193 mm) |
| Aspect Ratio | 16:9 | |
| Effective Display Area (W x H) | 1,039 x 584 mm | |
| Number of Pixels (H x V) | 1,920 x 1,080 pixels | |
| Brightness (Typ) | 1,500 cd/m2 (in daylight*2), 1,000 cd/m2 (in dark room) | |
| Contrast Ratio | 1,000 : 1 | |
| Response Time | 9 ms (G to G) | |
| Viewing Angle (Horizontal/Vertical) | 178° / 178° | |
| Orientation | Landscape / Portrait | |
| CONNECTION
TERMINAL | Touch Screen Panel | Capacitance Type Touch Panel |
| HDMI IN | HDMI TYPE A connector x 2 (Deep Colour Compatible) | |
| DVI-D IN | DVI-D 24 pin (HDCP Compatible) x 1 | |
| PC IN | MINI D-SUB 15 pin x1 Plug & Play (VESA DDC 2B) | |
| AUDIO IN (for DVI-D/PC) | M3 JACK x 1 | |
| CONTROL
TERMINAL | SERIAL | D-SUB 9 pin x 1 (EXTERNAL CONTROL TERMINAL),
RS-232C Compatible |
| AUDIO | Speakers Out | 10 W [5 W + 5 W] (10 % THD) |
| MECHANICAL | Dimensions (W x H x D) | 1,149 x 694 x 271 mm (45.2" x 27.3" x 10.7") (T.B.D.) |
| Weight | Approx. 65 kg (143.3 lbs.) (T.B.D.) | |
| Cabinet Material/Colour | Aluminum / Silver | |
| Mounting Method | VESA 400 x 400 mm (15.8" x 15.8") | |
| ENVIRONMENTAL | Operating Environment | Temperature: 0 °C to 45 °C (32 °F to 113 °F)*3
Temperature (Winter Mode): -20 °C to 45 °C (-4 °F to 113 °F)*3 Humidity: 20 % to 90 % (Non Condensation) |
*1: IP=Ingress Protection
*2: Measured under ambient lighting of approximately 80,000lx.
*3: When the panel is mounted facing direct sunlight, the operating temperature must be under 40 °C (104 °F) instead of 45 °C (113 °F).
