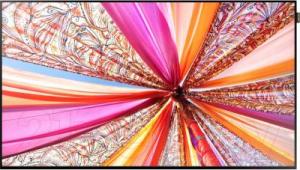

Профессиональная панель SAMSUNG DH40E

Характеристики

Series Name

SERIES NAME

DH-E

Display

SCREEN SIZE

40"

PANEL TECHNOLOGY

Slim Direct Lit

RESOLUTION

1920 x 1080

ASPECT RATIO

16:9

BRIGHTNESS

700nit

CONTRAST RATIO (TYPICAL)

5000:1

VIEWING ANGLE (H/V)

178°/178°

RESPONSE TIME

8ms

INPUT

Analog D-SUB, DVI-D(HDMI Common), Display Port 1.2

HDMI1 Component(CVBS Common)

Stereo mini Jack

USB 2.0 x 1

OUTPUT

DP1.2(Loop-out)

Stereo mini Jack

Power

POWER SUPPLY

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

POWER CONSUMPTION (TYPICAL/MAX)

48W/135W

POWER CONSUMPTION (STANDBY)

< 0.5W

Environmental Conditions

OPERATING TEMPERATURE

0℃ ~ 40℃

OPERATING HUMIDITY

10 ~ 80%

Features

SPECIAL

Hardware:Super Clear Coating, Temperature Sensor, Video Wall(15x15), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, SD Card Slot , Tuner(only for NA, KR)

Software:Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Built In MagicInfo Player S3, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter

SMART SIGNAGE PLATFORM

Yes

BUILT-IN TUNER

Yes

MEDIA PLAYER TYPE

Cortex-A9 1GHz Quad Core CPU, 1.5GB, DDR3-933, 8GB, USB 2.0, Linux OS

PLUG & PLAY

Yes

24/7 OPERATION

Yes

WI-FI

Yes

Размеры

WITHOUT STAND (W X H X D)

35.7" x 20.7" x 2.0"

PACKAGING (W X H X D)

41.8" x 23.6" x 4.5"

BEZEL WIDTH

9.5 (Top/Side), 15.0 (Bottom)

Weight

PRODUCT WEIGHT

16.6 lb.

PACKAGE WEIGHT

20.1 lb.

Опции

INCLUDED IN BOX

Quick Setup Guide, Regulatory Guide , Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover-Jack, Screw (M3L8, 1EA) (M4L8, 4EA)

OPTIONAL WALL MOUNT

WMN4070SD

WMN250MD, WMN450MD

OPTIONAL STAND

STN-L4055AD, STN-L3240E

OPTIONAL MEDIA PLAYER

SBB, PIM

Green Management

ENERGY STAR® CERTIFIED

Yes

ROHS COMPLIANT

Yes

EMISSION STANDARD

EMC

PACKAGING RECYCLABILITY

Yes, Packing Materials

Mechancial Specs

VESA MOUNT

200x200mm

Operation

OPERATING TEMPERATURE

0℃ ~ 40℃

OPERATING HUMIDITY

10 ~ 80%

Network

CPU

Quad Core

Package Contents

CABLES

D-Sub cable, Power Cord

OPTIONAL ACCESSORIES

Stand: STN-L4055AD, STN-L3240E

Mount: WMN4070SD, WMN250MD, WMN450MD

Specialty: CML400D (Ceiling Mount)
