Full Power On
100% Lamp Power
Attention on the Projection Screen
The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students’ focus back on them – or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by up to 70%.

Full Power On
100% Lamp Power
Attention on the Projection Screen

Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class Instructor
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.

Normal Mode
296W Projector Power Consumption by Average

Smart Eco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption by Average
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.

Source Detected
100% Lamp Power

No Source Detected
30% Lamp Power

Enjoy a lamp life performance of up to 5000 hours in Eco mode– longer lamp life expectancy of average projector lamps on the market! This certainly lowers the number of lamp changes and keeps all maintenance to a minimum.
*Lamp life results will vary depending on environmental conditions and usage.

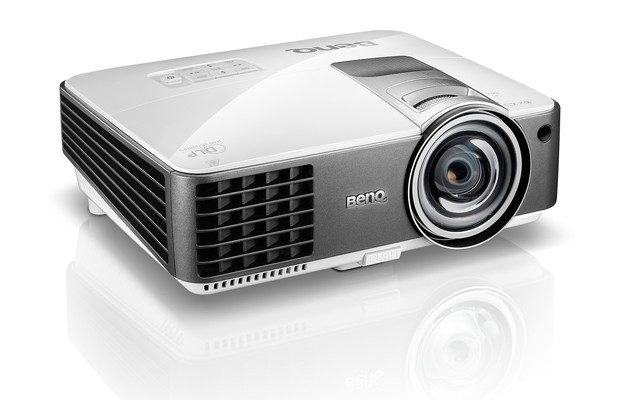

LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. The MX816ST offers seamless support for the Crestron and PJ-Link LAN Control system.

The MX816ST features one built-in 10W speaker to help enrich every lesson with top quality audio performances.


Display subtitles in video content without the need for an external closed-captioning device with the MX816ST. It's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.
Спецификации:
| Projection System | DLP® |
|---|---|
| Native Resolution | XGA(1024 x 768) |
| Brightness* | 3000 ANSI lumens |
| Contrast Ratio | 13000 : 1 |
| Display Color | 1.07 Billion Colors |
| Lens | F=2.6, f=6.9mm |
| Aspect Ratio | Native 4:3 (5 aspect ratio selectable) |
| Throw Ratio | 0.61 (78”@0.96m) |
| Image Size (Diagonal) | 40”~300” |
| Zoom Ratio | Fixed |
| Lamp Type | 210W |
| Lamp (Normal/Economic Mode)* | 4000/5000/6500 hours |
| Keystone Adjustment | 1D, Vertical ±40 degrees |
| Projection Offset | 130% ±5% |
| Resolution Support | VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency | 31K~102KHz |
| Vertical Scan Rate | 23~120Hz |
| Interface | Computer in (D-sub 15pin) x 2 (Share with component video)
Monitor out (D-sub 15pin) x 1 HDMI (v1.3) x 1 Composite Video in (RCA) x 1 S-Video in (Mini DIN 4pin) x 1 Audio in (Mini Jack) x 2 Audio L/R in (RCA) x 1 Audio out (Mini Jack) x 1 Speaker 10W x 1 LAN (RJ45) x 1 (LAN Control) USB (Type B) x1 (Download & page up/down) RS232 (DB-9pin) x 1 IR Receiver x2 |
| Dimensions(W x H x D) | 287.3x114.4x232.6mm |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Weight | 2.8kg (6.17lbs) |
| Audible Noise | 33/29 dBA (Normal/Economic mode) |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Power Consumption | 270W, Standby<1W |
| On-Screen Display Languages | Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes | Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) | Remote Control w/ Battery
Power Cord (by region) User Manual CD/Quick Start Guide Warranty Card (by region) VGA(D-sub 15pin) Cable |
| Accessories (Optional) | Carry bag
Spare Lamp Kit 3D Glasses Ceiling Mount Wall Mount 0.6 T/R |
| 3D Support and Compatibility | PC: 120Hz Frame Sequential 3D for resolutions up to WXGA,
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+ Video: 60Hz Frame Sequential 3D for resolutions up to 480i |
