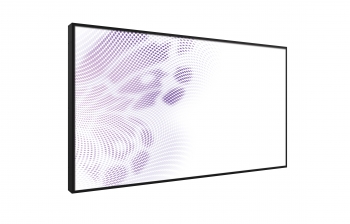

Name: LCD панель BenQ SV500
Brand: BenQ

Каталог товаров

Запросить дилерскую цену

Стать дилером Где купить?

Скачать сейлз-кит (здесь) - PowerPoint 1.5Mb

Give your customers the best view

The SV500 delivers crisply rendered, vibrantly colored images and video in Full HD resolution. For added flexibility, you can use the SV500 to display in either landscape or portrait orientations, while the energy-efficient LED backlight provides a bright picture while saving on electricity costs.

Take advantage of portrait mode

BenQ puts extra attention on optimizing portrait mode, which in many scenarios is more effective than landscape. The LED-backlit panel features stronger attachment points on all edges to prevent the “Mura” image distortion common on consumer displays when used in portrait orientation.

BenQ PID

Conventional

Create a video wall instantly

The SV500 makes it easy to set up a stunning video wall. Simply daisy chain up to four SV500 units—there’s no need for a separate video signal splitter. The SV500’s in/out VGA/DVI ports let you display content from either analog or digital sources, and the SV500’s super-thin bezel makes it ideal for building a video wall.

2x2 Display without Splitters

Manage multiple devices easily

Multiple Display Administrator (MDA) offers remote management of multiple digital signages, saving time and effort. In addition to providing greater convenience, MDA enables powerful functionality such as integration with scheduling systems, email notifications of arising issues, centralized monitoring, and the ability to easily shut down equipment that is not in use, saving your business significant power costs.

Access and play back your content without hassles

The SV500 frees you from the need to connect a PC, fussing with cables and complex settings. Simply plug a flash drive with your content into the SV500’s USB port to access files in popular formats such as MP4 and JPEG for display or playback.

Спецификации:

Панель

Screen Size	50"
Type	Normally black
Light Source	Direct LED
Active Area (mm)	1095.84 (H) x 616.41(V)
Resolution (pixels)	FHD 1920 x 1080 (pixels)
Aspect Ratio	16:9
Brightness (typ.)	400 nits (typ.)
Native Contrast Ratio (typ.)	3000:1 (typ.)
Response Time (G-to-G)	6.5ms (typ.)
Panel bit	8 bit, 16.7M
Light life	30,000 hrs (typ.)
Orientation	Portrait / Landscape
Pixel Pitch(HxW)	0.57 (H) x 0.57(W) mm
Frame Rate	60 Hz
Viewing Angle (H/V)	178 degree (H) / 178 degree (V)
Panel Surface	Anti-Glare, 3H
Color Gamut (x% NTSC)	72%

Входные/выходные подключения

Power (AC) Input/Ouput	Power (AC) Input : x1 Power (AC) Output :N/A
Audio line-in	x1
Power Switch	x1
VGA Input/Output	VGA Input : x1 (2x2 Daisy Chain) VGA Output : x1
DVI Input/Output	DVI-D Input : O (2x2 Daisy Chain) DVI-D Output : 1
HDMI Input/Output	HDMI In : x2 HDMI Out : N/A
DisplayPort Input	N/A
USB Player (Photo, Video)	x1
RS232 Input/Output	x1
RJ45 Port	x1
FW Update	x1 (USB only)

Аудио

Internal Speaker	10W+10W

Питание

Power Consumption (Maximun)	<200W
Voltage	100 V ~ 240 V, 50 Hz / 60 Hz

Окружение

Usage (hrs/days)	16Hours/day

Маханика

Mechanical	Weight (without packing / with packing) : 21/26 kg Dimension (WxHxD) : 1123643110.5mm Bezel Width (T/B/L/R) : 10.4/10.4/10.4/10.4 mm Wall Mounting : 300x200 mm (4 holes)

Упаковка/Аксессуары

Package/Accessory	Remote Controller : x1 (Generic no brand) PWR Cord (by region) : 1.8 meter, detachable, black color. RoHS compliance. VGA Cable : x1 Quick start guide : x1

Особенности

Features	Image Setting : O VGA Daisy Chain : O DVI Daisy Chain : O RS232 Control Daisy Chain : O Sharpness Enhancement : O Proof of Image Retention : O 10 Bit color processing : O Build-in Video Wall Support : O Scheduling : O CEC Control : HDMI only

Программное обеспечение

Multiple Display Control (MDA)	O
